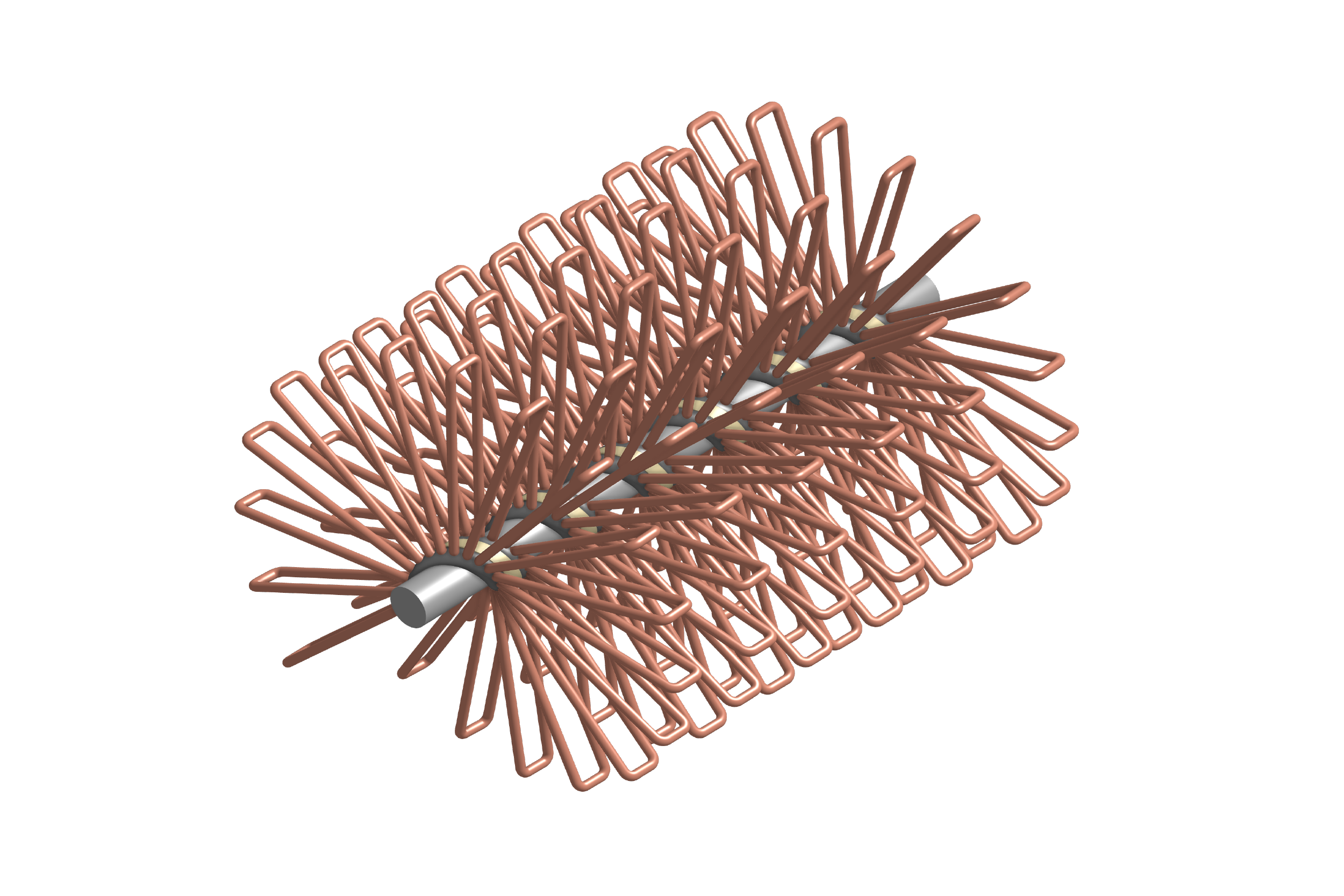

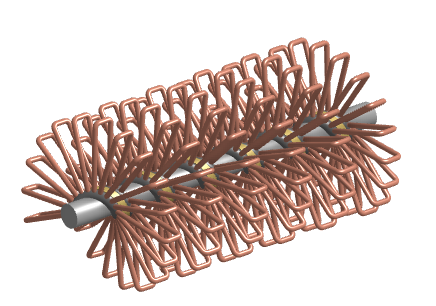

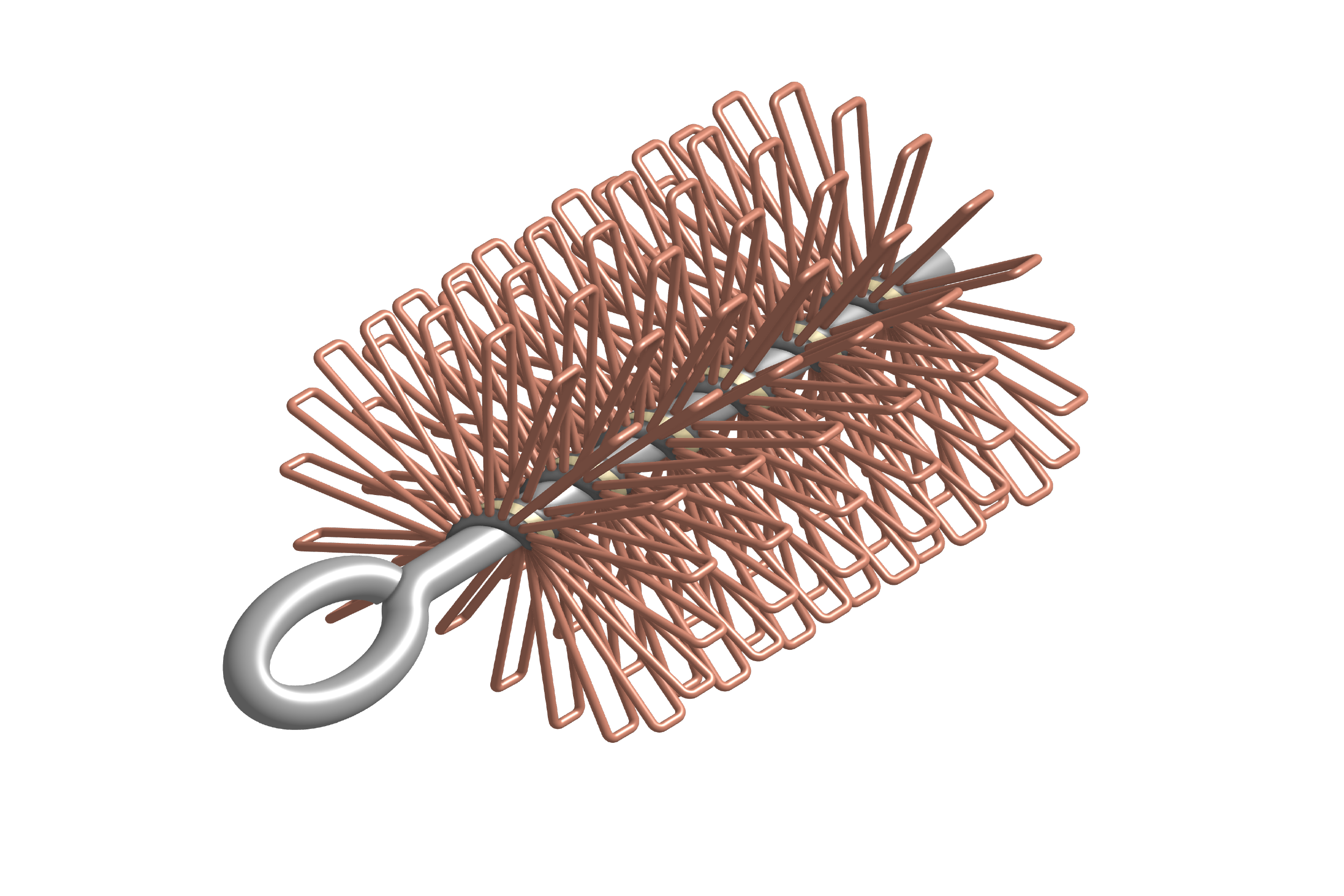

Wire Wound Turbulators
Turbulators, for any type of heat exchangers creating turbulated flow
Heating
Cooling
Scroll
Details
Turbulator Design

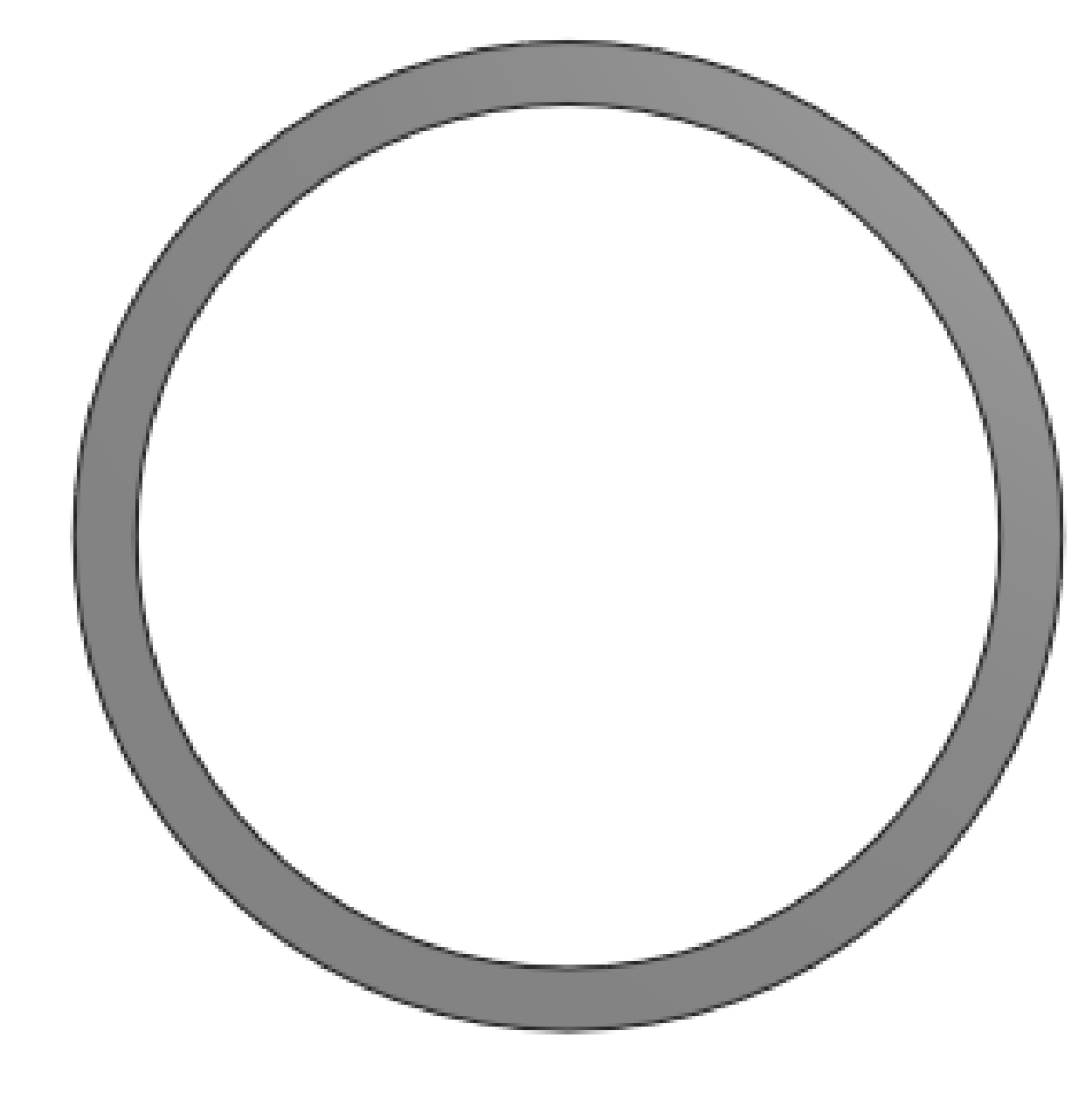

Center Rod
?

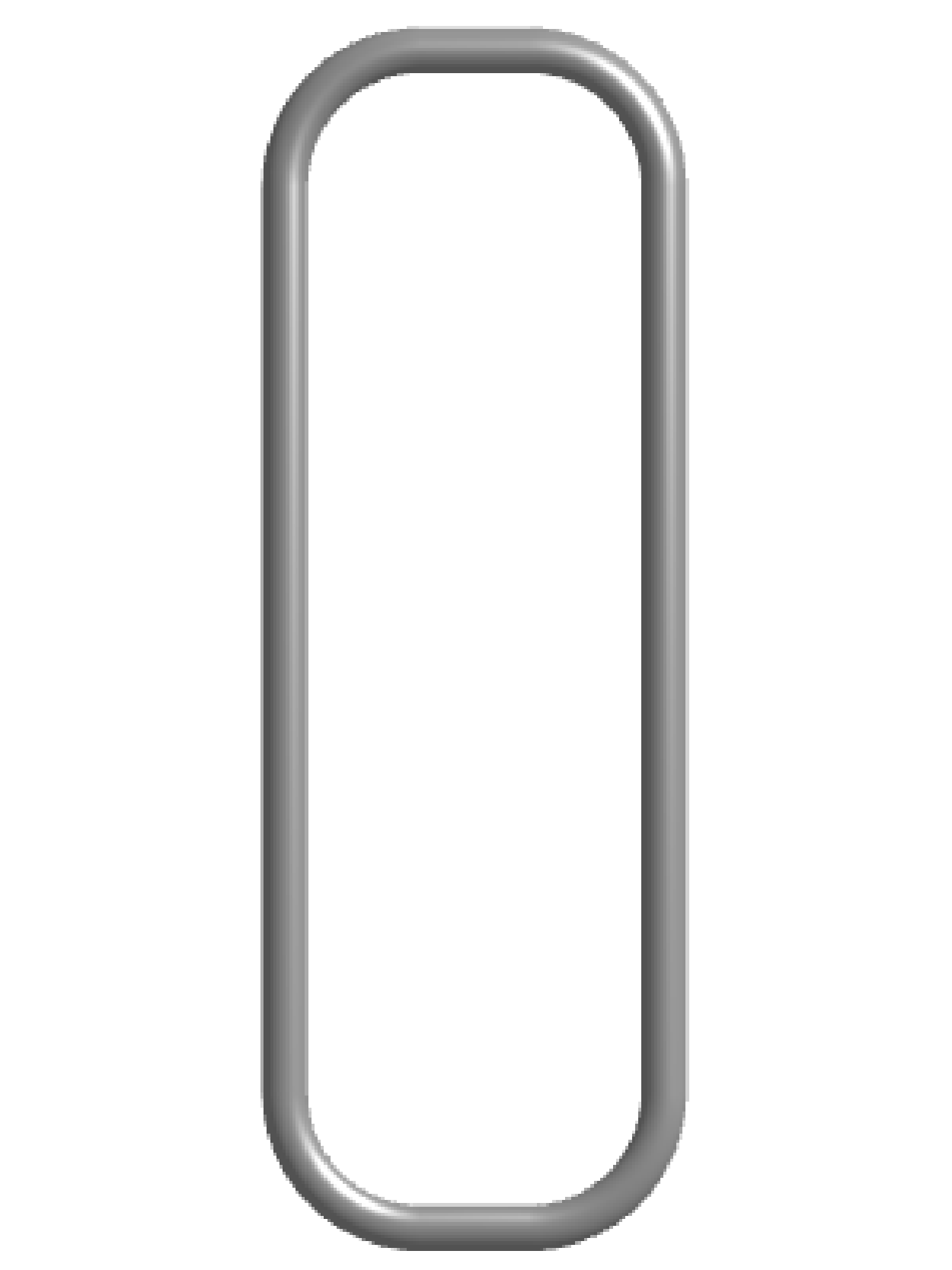

Finne Area
?

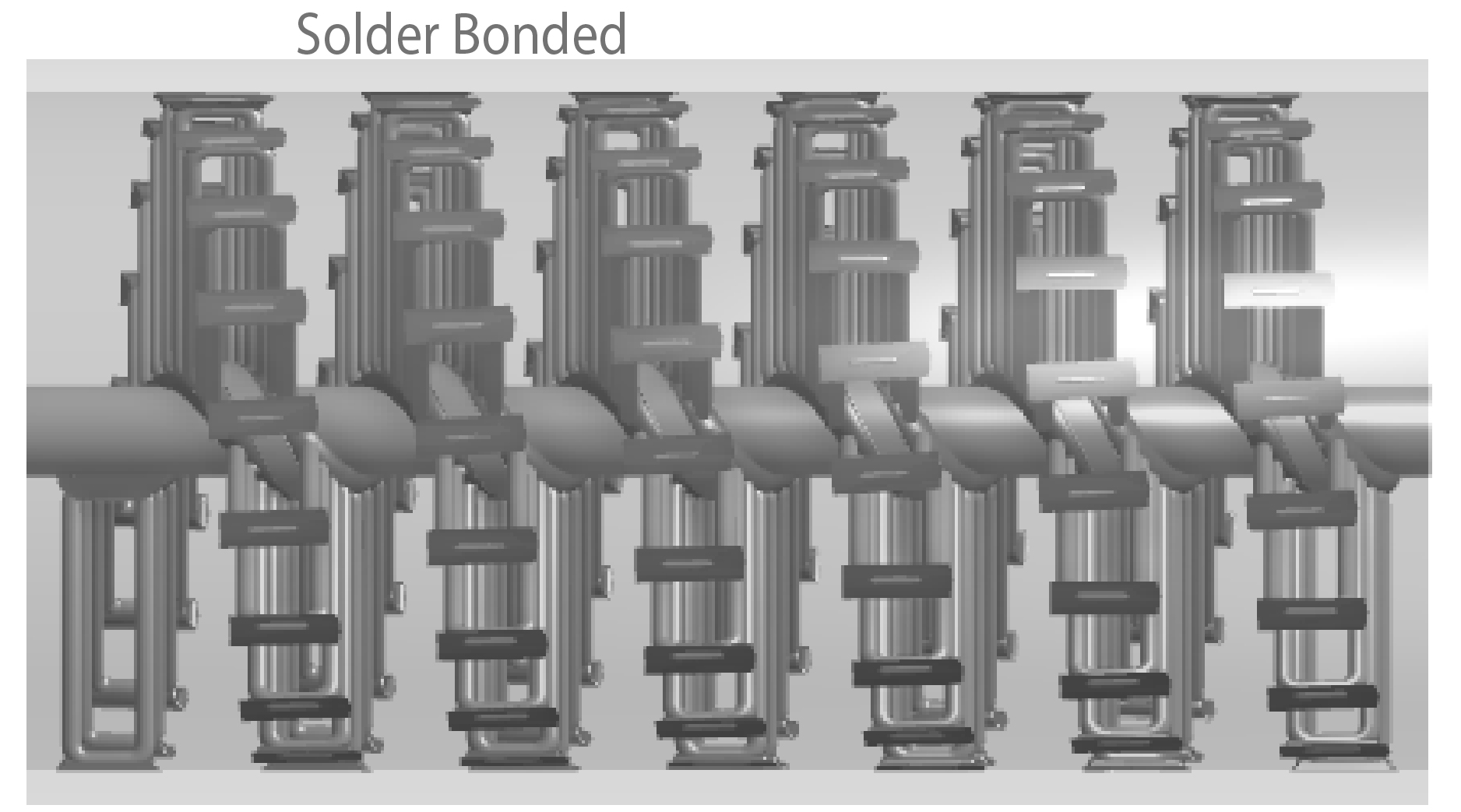

Solder or Resin Bonded
?

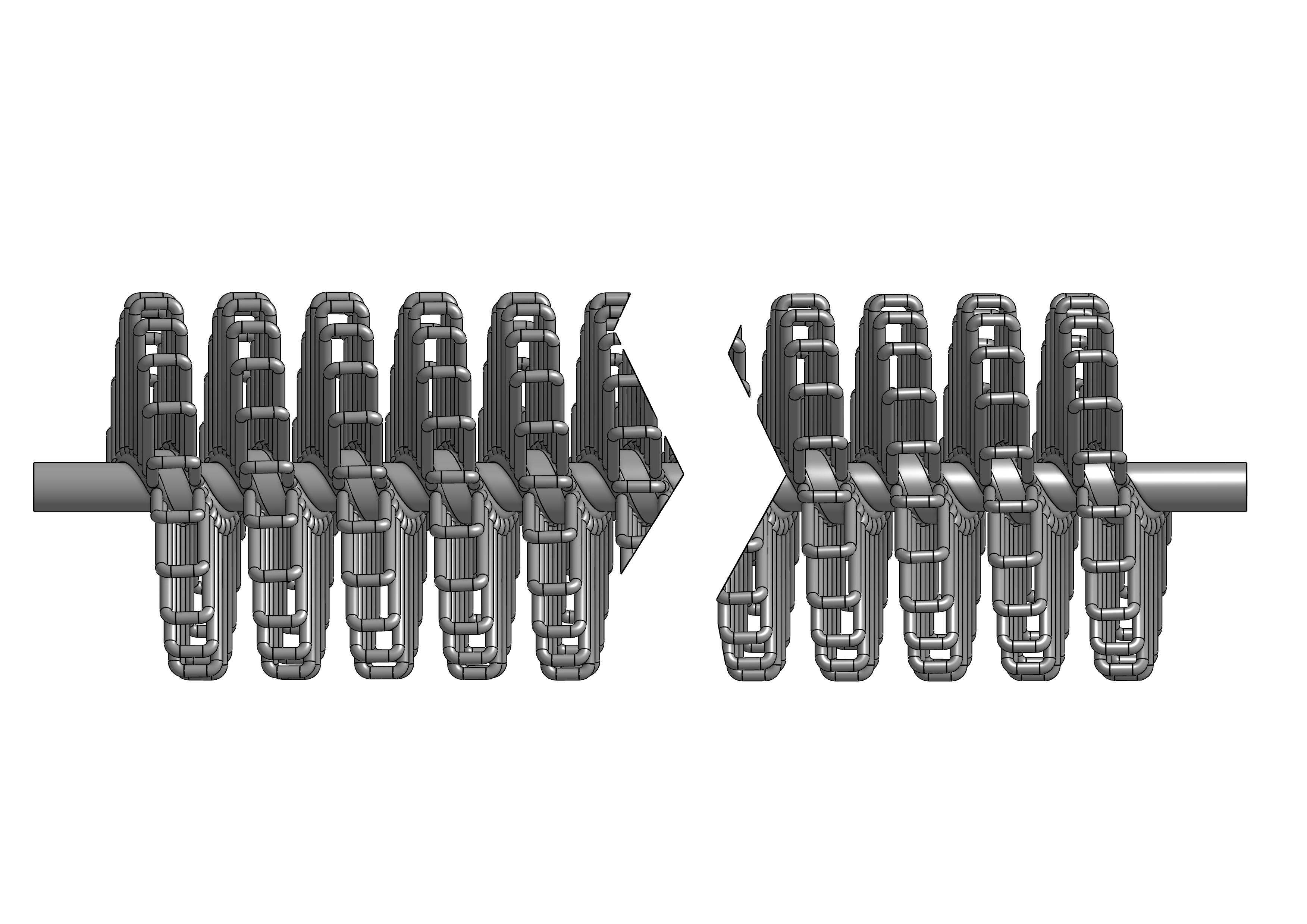

Bonded vs Pull Through
Copper Fin
Rod Specification
- ASTM A179
- ASTM A214
- BS EN 10305-1 E235+C
- Seamless or Welded tube.
- All other specifications can be quoted.
Fin Specification
- Copper Wire C101 CU-ETP DIN EN 13602/07.02
- 0.711 mm (22 swg) Diameter
- Solder Bonded
- Maximum Temperature 180° Deg C (240° Deg Hi Temp Solder)
- Minimum Temperature -40° Deg C
Stainless Fin
Rod Specification
- ASTM A179
- ASTM A214
- BS EN 10305-1 E235+C
- Seamless or Welded tube.
- All other specifications can be quoted.
Fin Specification
- Copper Wire C101 CU-ETP DIN EN 13602/07.02
- 0.711 mm (22 swg) Diameter
- Solder Bonded
- Maximum Temperature 180° Deg C (240° Deg Hi Temp Solder)
- Minimum Temperature -40° Deg C
Aluminium Fin
Rod Specification
- ASTM A179
- ASTM A214
- BS EN 10305-1 E235+C
- Seamless or Welded tube.
- All other specifications can be quoted.
Fin Specification
- Copper Wire C101 CU-ETP DIN EN 13602/07.02
- 0.711 mm (22 swg) Diameter
- Solder Bonded
- Maximum Temperature 180° Deg C (240° Deg Hi Temp Solder)
- Minimum Temperature -40° Deg C
